Sentinel Plus DX 5 (Dual Reflective)
Price range: $150.28 through $1,006.08
Discover Solar Gard’s Sentinel Plus DX 5 window films, offering up to 82% heat rejection, UV protection, and energy savings. Available in Stainless Steel, Silver, Clear, and SX.
Sentinel Plus Films – Protect Your Space

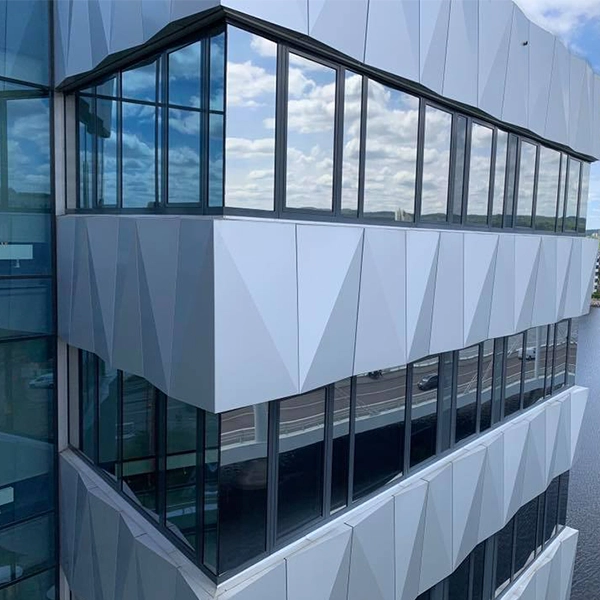

Enhance your building’s energy efficiency with Solar Gard’s Sentinel Plus exterior window films. Designed to provide powerful heat rejection, these films are perfect for anyone seeking an effective solution for controlling solar heat and glare. Available in a range of finishes including Stainless Steel, Silver, Clear, and SX, Sentinel Plus is suitable for both commercial and residential properties.
Advantages:
- Up to 82% Solar Energy Rejection: Maximize comfort by reducing heat inside your building, allowing for more stable indoor temperatures.
- Aesthetic Upgrade: Give older buildings a modern update with a sleek, uniform appearance.
- Cost-Efficient: The advanced heat rejection properties of Sentinel Plus help cut down on air conditioning costs, providing long-term savings.
- Comprehensive UV Defense: Protect your interior furnishings, flooring, and loved ones from harmful UV rays with high-performance UV blockers.
| Specification | Sentinel Plus DX 15 | Sentinel Plus DX 5 |
|---|---|---|
| Visible light transmittance % | 14% | 5% |
| Visible light reflectance (exterior) % | 42% | 60% |
| Visible light reflectance (interior) % | 17% | 15% |
| Solar heat gain coefficient | .25 | .14 |
| Total solar energy rejected % | 75% | 86% |
| UV Tdw-ISO @ 300 to 700 nm % | 11% | 4% |
| UV light blocked (300 to 380 nm) % | >99% | >99% |
| Fade Reduction % | 87% | 95% |
Performance Notes:
- Performance results are calculated using NFRC methodology and LBNL Window software, applied to 1/4″ (6mm) clear glass and are subject to variations within industry standards and only intended for estimating purposes. This data is provided for informational purposes only and subject to normal manufacturing variances.
- Performance results for glare and fade reduction are calculated by comparing filmed glass to that of untreated glazing.
| Weight | 26.4 lbs |
|---|---|
| Dimensions | 76 × 6 × 7 in |
| Roll Size | 36"x25', 36"x50', 36"x75', 36"x100', 48"x25', 48"x50', 48"x75', 48"x100', 60"x25', 60"x50', 60"x75', 60"x100', 72"x25', 72"x50', 72"x75', 72"x100' |
